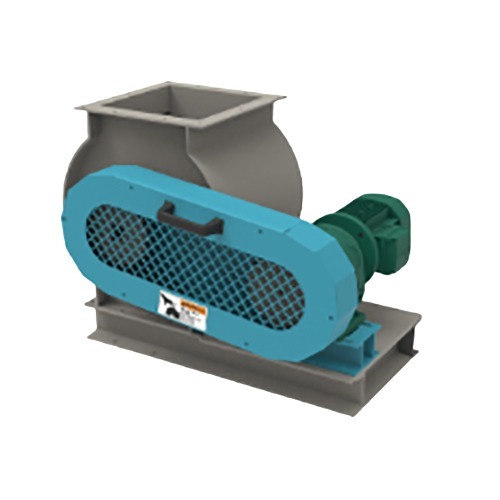

FX Air Lock
Product Details:
- Surface Finish Powder Coated
- Features Simple operation, Low maintenance, High efficiency
- Power Source Electric
- Thickness As per model
- Material Mild Steel / Stainless Steel
- Type Air Lock
- Structure Rotary Valve
- Click to view more
X
FX Air Lock Price And Quantity
- 1 Unit
FX Air Lock Product Specifications
- Rotary Valve
- Simple operation, Low maintenance, High efficiency
- Powder Coated
- Used to discharge powder, granules, and pellets from cyclones, hoppers or pneumatic conveying systems
- No
- Variable / Adjustable
- 0.5 - 2 HP
- No
- Mild Steel / Stainless Steel
- Yes
- Corrosion Resistant
- 220-240 V AC
- No
- Air Lock
- As per requirement
- Electric
- As per model
- Mild Steel / Stainless Steel
- Cast Iron / Stainless Steel
- Food, Pharmaceutical, Chemical, Cement, Power, Plastics
- Up to 250C
- Gear motor
- Flange Mounted
- 8 (standard)
- 100 mm to 400 mm (customizable)
- Corresponding to inlet size
- High sealing efficiency
FX Air Lock Trade Information
- Cash in Advance (CID)
- 100 Unit Per Month
- 10 Days
- All India
Product Description
- Prevents Air Leakage: Maintains system pressure balance by minimizing unwanted air ingress or loss.
- Improves Material Flow Control: Ensures smooth, consistent, and uninterrupted feeding of bulk materials.
High-Efficiency Air Lock Solutions
FX Air Lock rotary valves are engineered for precise, airtight discharge of bulk materials, supporting both pressure and vacuum pneumatic conveying systems. With customizable sizing and material choices, these air locks can be tailored to suit a variety of industrial applications, ensuring seamless integration with existing processes.
Durable and Adaptable Construction
Designed for longevity and consistent performance, FX Air Lock units are manufactured from high-grade cast iron, mild steel, or stainless steel. With powder-coated surfaces and corrosion-resistant features, they stand up to demanding environments in food, pharmaceutical, chemical, and related industries.
Seamless Operation and Maintenance
Featuring gear motor drives, adjustable speeds, and 8-vane rotors, FX Air Locks provide reliable material discharge with minimal maintenance requirements. Their simple operation and high sealing efficiency reduce the risk of contamination, conserve energy, and optimize system efficiency.
FAQ's of FX Air Lock:
Q: How does the FX Air Lock function in a pneumatic conveying system?
A: The FX Air Lock operates as a rotary valve that facilitates controlled entry and discharge of powders, granules, and pellets from cyclones or hoppers into pneumatic conveying lines. Its precision-sealed rotor maintains high airtightness, minimizing air leakage and ensuring efficient conveying.Q: What customization options are available for inlet and discharge sizes?
A: The inlet sizes for the FX Air Lock can be tailored between 100 mm and 400 mm to meet the specific requirements of your operations. Discharge sizes are matched to corresponding inlet dimensions, allowing seamless integration into both new and existing material handling setups.Q: When should I choose stainless steel versus mild steel or cast iron for the valve construction?
A: Select stainless steel for highly corrosive environments or hygiene-critical applications such as food and pharmaceuticals. Cast iron or mild steel is suitable for less harsh conditions or where cost efficiency is crucial, such as in cement or general manufacturing.Q: Where can the FX Air Lock be mounted in an industrial setup?
A: It is designed for flange-mounted installations and can be placed at discharge points of hoppers, silos, cyclones, or at the feed point in pneumatic conveying systems across a range of industries including chemicals, food, cement, and plastics.Q: What is the maintenance process for the FX Air Lock?
A: Maintenance is straightforward due to its simple and robust build. Regular inspection for wear on the rotor, vanes, and seals, as well as periodic lubrication of bearings and gear motor components, will ensure long-term, trouble-free operation.Q: How does the high sealing efficiency benefit my operation?
A: High sealing efficiency prevents air and material leakage, optimizing material flow, reducing waste, improving conveying efficiency, and protecting downstream equipment from contamination or pressure fluctuations.Tell us about your requirement
