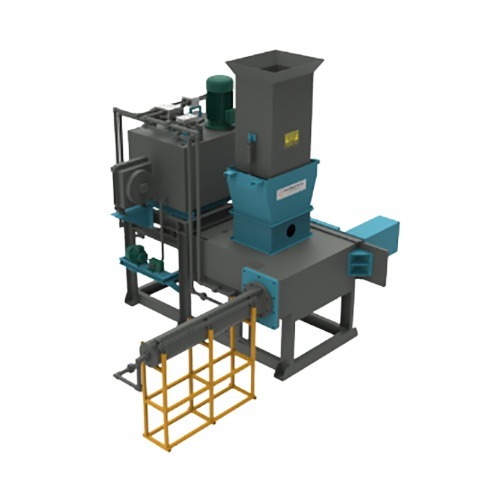

FX Horizontal Hulls Bale Press
Product Details:
- Machine Type Baling Press
- Production Capacity 2-3 bales/hour
- Cooling System Oil Cooler
- Power Rating 18.5 kW
- Model No FX-120HBP
- Drive Hydraulic
- Noise Level 75 dB
- Click to view more
X
FX Horizontal Hulls Bale Press Price And Quantity
- 1 Unit
FX Horizontal Hulls Bale Press Product Specifications
- Semi Automatic
- Welded Steel Frame
- 75 dB
- Hydraulic
- FX-120HBP
- Hydraulic
- 4200 kg
- 18.5 kW
- Oil Cooler
- Baling Press
- 2-3 bales/hour
- 120 ton
- Paint Coated
- 3600 x 2100 x 1500 mm
- Horizontal Bale Press
- 25 HP
- 25 HP
- Cottonseed hulls, agro residue baling
- Electric
- High Precision
- PLC Based
- 50 Hz
- Blue & Yellow
- Automatic Central
- 415 V
- Up to 45C
- Robust construction, Easy operation, Low maintenance
- 400-500 kg
- Digital with manual override
- Emergency stop, Interlock guarding
- 1250 mm
- 18 cycles/hour
- Cottonseed hulls, biomass, agricultural residue
- L 1050 x W 700 x H 800 mm (approx)
- Onsite/Remote assistance
- L 1800 x W 900 x H 900 mm
- 55 seconds
- 220 mm
- 200 litres (ISO VG 68)
- Floor Mounted
FX Horizontal Hulls Bale Press Trade Information
- Cash in Advance (CID)
- 100 Unit Per Month
- 10 Days
- All India
Product Description
The FX Hulls Bale Press by Ferro offers an effective solution to one of the major challenges in the cotton industry-efficient handling and management of cottonseed hulls. Engineered for superior performance, this machine combines advanced hydraulic technology, intelligent automation, and a rugged construction to deliver unmatched efficiency, durability, and cost-effectiveness.
Designed for oilseed processing plants, cotton ginning mills, and feed industries, the FX Hulls Bale Press compresses hulls into dense, uniform bales. This significantly optimizes storage space, reduces transportation costs, and improves overall material handling efficiency.
Key Features
- High-Capacity Hydraulic System: Equipped with double-acting hydraulic cylinders to ensure precise compression and consistent bale density.
- Efficient Bale Formation: Produces uniform bales with adjustable weight options (30 kg, 50 kg, or 60 kg), controlled through PLC-based automation.
- Robust Frame Design: Heavy-duty steel construction with wear-resistant components ensures long service life under high-pressure operations.
- Automated Control System: PLC-based system enhances precision, minimizes manual intervention, and improves operational efficiency.
- Integrated Weighing System: Features a high-accuracy weighing system from Mettler Toledo, ensuring reliable and repeatable measurements.
- Advanced Safety Features: Includes limit switches, interlocks, and emergency stop systems to ensure operator and machine safety.
- User-Friendly HMI Interface: Enables real-time monitoring, fault diagnostics, and customizable operational settings.
- Premium Bearing Components: Utilizes specialized cam follower bearings from leading manufacturers such as SKF and FAG for enhanced durability and performance.
- Flexible Operation Modes: Supports both automatic and manual modes for operational versatility.
- High-Performance Power Pack: Powered by a 40 HP hydraulic system with dual-pump configuration and an integrated oil cooling system to maintain optimal temperature and pressure conditions.
Specification
Efficient Baling, Designed for Volume
Engineered for continuous industrial use, the FX Horizontal Hulls Bale Press streamlines bale production, making it ideal for cottonseed hulls and agro-residue. With high precision and a cycle time of 55 seconds, it can produce 2-3 consistent bales per hour, optimizing both productivity and material storage.
User-Centric Control & Safety
Equipped with a digital operator panel and manual override, the machine puts control at your fingertips. Advanced safety interlocks and an emergency stop feature ensure safe operation, while the robust welded steel frame guarantees machine longevity even under rigorous workloads.
Strength Meets Versatility
The FX-120HBP operates with a powerful 25 HP motor and hydraulic drive, handling challenging biomass with ease. Its automatic central lubricating system and integrated oil cooler maintain performance integrity during extended operation, ensuring low maintenance and reduced downtime.
FAQ's of FX Horizontal Hulls Bale Press:
Q: How does the FX Horizontal Hulls Bale Press operate, and what materials can it process?
A: The FX-120HBP uses hydraulic technology to compress biomass such as cottonseed hulls, agricultural residues, and other agro-based materials into compact, heavy bales. Its semi-automatic operation with a digital PLC-based control panel streamlines workflow for high-efficiency baling.Q: What are the steps involved in setting up and using the bale press?
A: Install the machine on a level floor space following the manufacturer's guidelines. Fill the hydraulic system with 200 litres of ISO VG 68 oil. Power the unit with 415V at 50Hz. Load raw materials into the chamber, input cycle parameters on the digital panel, and start the process. Safety features, like interlock guarding and the emergency stop, protect operators throughout.Q: When and where is this bale press most effectively used?
A: The FX Horizontal Hulls Bale Press excels in agricultural processing plants, cottonseed oil mills, and biomass storage facilities where frequent, large-volume baling of agro waste or hulls is needed. It is effective in locations requiring high throughput and consistent bale sizes for storage or export.Q: What maintenance is required and how is support provided?
A: Routine maintenance is minimal due to the automatic central lubricating system. Regularly check hydraulic oil levels and cleanliness of the chamber. The machine comes with both onsite and remote service support options, ensuring prompt troubleshooting and maintenance, as provided by the manufacturer or distributor.Q: What benefits does this machine offer compared to traditional baling presses?
A: Compared to manual systems, the FX-120HBP increases productivity (18 cycles/hour, 2-3 bales/hour), creates high-density, uniform bales, and offers advanced precision via its PLC control. Other advantages include lower noise levels, robust construction, and reduced operational risks through its enhanced safety features.Q: How does the machine ensure operator safety during use?
A: Operator safety is prioritized through emergency stop capabilities, interlock guarding to prevent accidental access, and an intuitive digital control panel that allows for both automatic and manual overrides, ensuring the machine can be stopped or adjusted instantly if necessary.Tell us about your requirement
